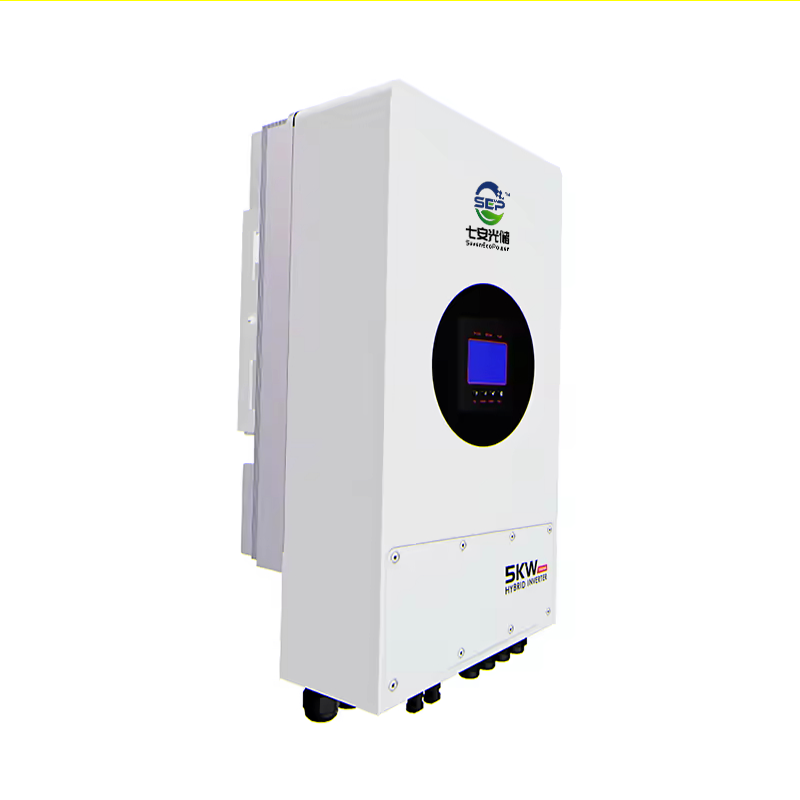

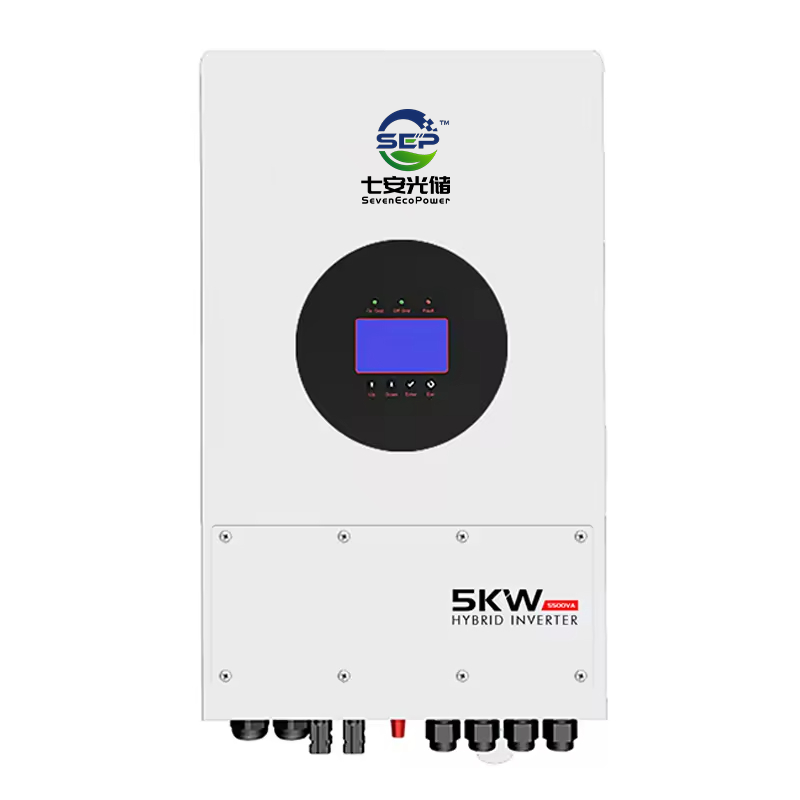

Hybrid Solar Inverter 5K

The Hybrid Solar Inverter 5K is a core device that integrates solar power generation, energy storage management, and grid interaction, making it ideal for small and medium-sized homes, small commercial sites, and off-grid scenarios. The following describes the technical characteristics, core advantages, typical applications and selection suggestions:
1. Core technical characteristics and product examples
1. Multi-energy collaborative management capabilities
Hybrid energy input: Supports solar panels, lithium/lead-acid batteries, grid and even diesel generator connections. For example, Flextron VHS-5K-L01-K offers 4 energy input options to dynamically distribute the power ratio; The DEYE Series Split Phase Hybrid Inverter supports diesel generator energy storage to achieve multi-source complementarity of light, storage and diesel.
Intelligent energy scheduling: The SRNE 5kW Hybrid Inverter has four built-in working modes (mains priority, solar priority, etc.), and automatically switches between peak-to-valley electricity price strategies to reduce electricity costs. The intelligent EMS system of Jinlang Technology S5-EH1P (3-6) K-L can optimize battery charging and discharging in real time to improve economy.
2. Efficient power conversion and expansion capabilities
MPPT Technology Optimization: Multifit Solar's 5K hybrid inverter uses an independent patented MPPT algorithm with a tracking efficiency of ≥99%; The MPPT voltage range of the DEYE series is 150-425V, supports 2x DC overprovisioning, and has a conversion efficiency of 97.6% to maximize solar energy utilization.
Parallel Expansion Design: PowMr PS-5K supports up to 6 units in parallel, and the total power is extended to 30kW; The Dawnice 5000W Hybrid Inverter allows up to 3 units to be connected in parallel to meet the power expansion needs.
3. High reliability and protection design
IP65 protection level: Huawei SUN2000 and DEYE series products are certified for dust and water resistance, and can be directly installed on rooftops, terraces, and other outdoor environments to resist salt spray and sand erosion.
Multiple safety protection: Flextron VHS series integrates 12 mechanisms such as anti-islanding and over-temperature protection; ZLPOWER GS series has short-circuit, over-voltage, and reverse polarity protection, which is suitable for complex environments.

Second, the key advantages and application value
1. Flexible energy autonomy
Off-grid and weak grid support: The Multifit Solar system can build an independent microgrid to achieve complementary photovoltaic and storage in remote areas. The black start function of the Jinlang S5-EH1P series supports continuous power supply when there is no grid connection, ensuring critical facilities such as medical stations and communication base stations.
Home energy management: Products such as the Solax X1 Hybrid G3 support peak-to-valley electricity price arbitrage, such as charging during low hours and discharging during peak hours, combined with a 10ms fast switching UPS function to ensure seamless power supply for critical loads such as refrigerators and security systems in the event of a power outage.
2. Efficient and economical
High conversion efficiency: DEYE series has a European efficiency of 97.6%, which is better than traditional centralized inverters; Huawei's SUN2000 series intelligent IV diagnostics improve power plant O&M efficiency and reduce losses.
Low maintenance costs: Modular design (e.g. Multifit Solar) facilitates the replacement of faulty modules individually, reducing downtime; The AFCI protection of the S6-GR1P series actively reduces the risk of fire and improves system safety.
3. Wide compatibility
Battery adaptability: The SRNE 5kW model is compatible with a variety of battery types such as lead-acid and lithium iron phosphate, and supports the upgrade of new and old systems; DMEP-5KS48 series is compatible with 48V lithium battery, which can flexibly configure energy storage capacity.
Equipment compatibility: The split-phase output (120V/240V) of the Dawnice 5000W inverter is suitable for different voltage standards in North America and Europe; Sun-SG04LP3-EU supports three-phase unbalanced output, which is suitable for scenarios such as hotels and data centers.
4. Extreme environmental adaptability
Wide temperature range operation: Flextron VHS-5K-L01-K can operate stably from -25°C to 60°C; Huawei SUN2000 has passed high and low temperature tests and maintains high reliability in desert and coastal areas.
High current output: The 250A charge and discharge current of the DEYE series is suitable for high-power equipment; Sun-SG04LP3-EU's 240A high-current design meets industrial-grade requirements.

Hybrid Solar Inverter 5K is a powerful and flexible energy solution designed for modern solar systems. Featuring dual MPPT trackers with 99.9% efficiency, wide PV input voltage (150V–500V), and support for both lithium and lead-acid batteries, this hybrid inverter ensures optimal energy conversion and storage. It seamlessly switches between on-grid, off-grid, and UPS modes, with <20ms transfer time for uninterrupted power supply. Built with transformer isolation and low-voltage 48V battery support, the Hybrid Solar Inverter 5K offers safe, stable operation. With integrated Wi-Fi for mobile monitoring, RS485/USB/CAN communication, and IP65-rated enclosure, it’s ideal for residential and light commercial use—whether for new installations or retrofitting existing solar systems.

Product Features

1. Support Wi-Fi for mobile monitoring.
2. 48V low voltage battery, transformer isolation topology.

3. Max. charging/discharging current of 100A.
4. DC couple and AC couple to retrofitexisting solar system
5. Power supply can be switched automatically.
6. Long warranty period：5 years.

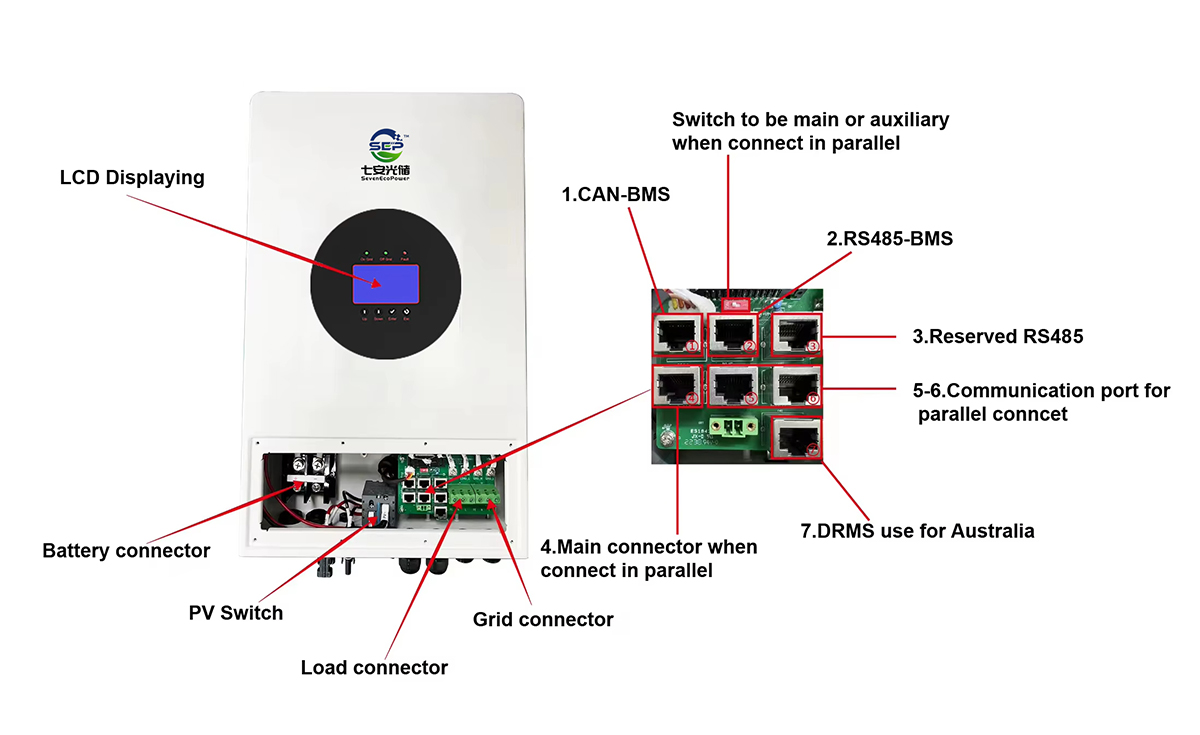

7. Convenient RS232/RS485 Communication.
8. IP65 Protection level.
9.Multiple operating modes, on-grid,off- grid and UPS,MPPT charger built in.
