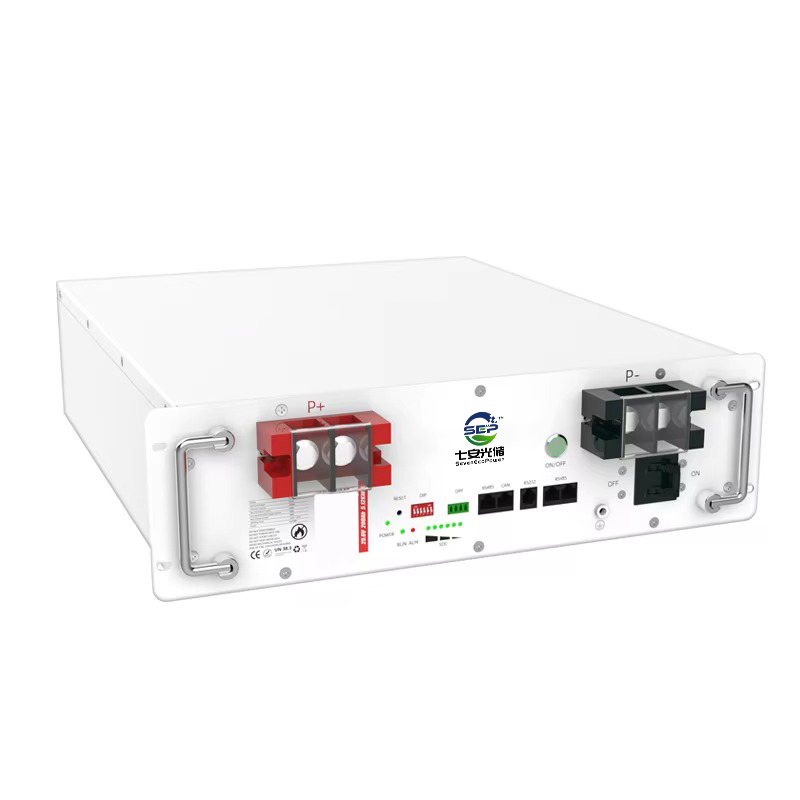

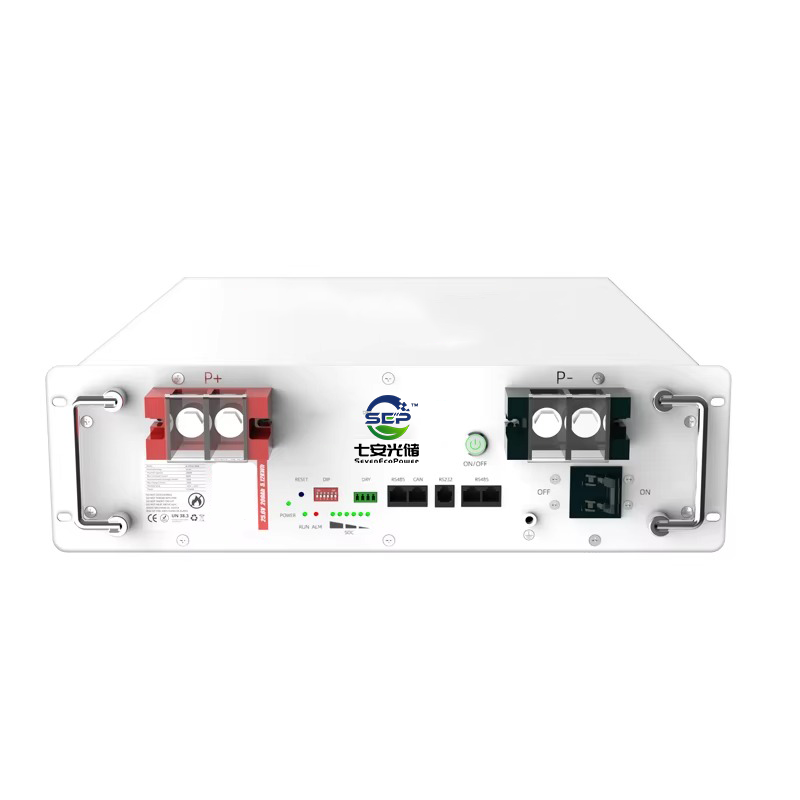

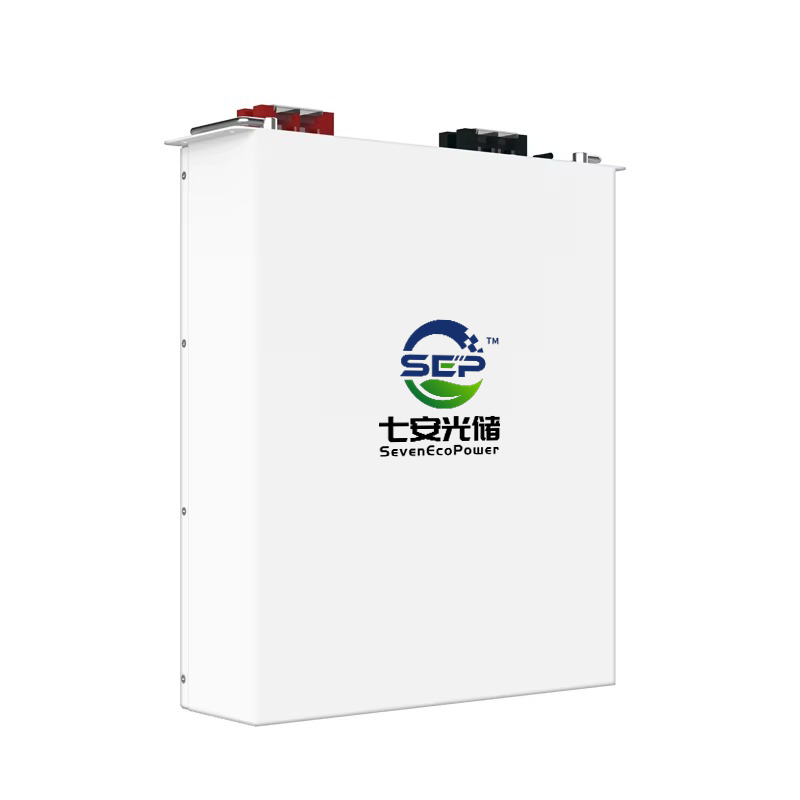

24v Rackmount Series
Safe & Long-Lasting Performance: Equipped with Tier One A+ prismatic LiFePO4 cells offering over 6000 cycles at 80% DoD, with a 10-year warranty and no thermal runaway risk.
Modular & Scalable Design: Stack up to 16 units in parallel, easily scaling from 2.56kWh to over 80kWh for residential, commercial, or telecom energy storage.
Smart Battery Management System (BMS): Advanced BMS ensures real-time voltage balancing, thermal protection, and safe operation with CAN/RS485/RS232 communication compatibility.
High Efficiency & Fast Charging: Supports 98% efficiency, rapid charge/discharge, and seamless cycling multiple times per day—ideal for solar and off-grid applications.
Wide Compatibility & Robust Protection: IP22 to IP65-rated enclosures and compatibility with 20+ inverter brands enable plug-and-play installation across new or retrofitted systems.
Introduction of 24V rack-mounted series products
Basic overview
24V rack-mounted series products usually refer to related equipment with a rated voltage of 24V and rack-mounted design, such as 24V rack-mounted lithium batteries, which are widely used in communications, electric power, industrial automation and other fields to meet the power supply needs in different scenarios.
peculiarity
Compact design
Space-saving: The rack-mount design meets standard cabinet installation specifications, making efficient use of cabinet space and reducing floor space. For data centers, communication base stations and other places with limited space, the compact design enables high-density installation of equipment and improves space utilization.
Easy integration: It can be easily integrated with other rack-mounted equipment in the same cabinet, such as servers, network equipment, etc., to achieve unified layout and management of the system, and facilitate the construction of a complete solution.
High energy density
Large-capacity storage: In a limited volume, it can provide high energy storage capacity. Take the 24V rack-mounted lithium battery, for example, which can store enough power to provide continuous and stable power support for the equipment to meet the needs of long-term operation.
Efficient power supply: It can quickly respond to the power demand of the equipment, provide the required current in a short time, and ensure the normal start and operation of the equipment.
Good compatibility
Adaptable to a wide range of devices: Compatible with many different types of devices, providing them with the right voltage and current. Whether it's communication equipment, industrial automation control systems, or security monitoring equipment, you can use 24V rackmount series products as a power source.
Support a variety of communication protocols: Some products support common communication protocols, such as RS485, CAN, etc., which is convenient for data interaction and remote monitoring with other devices to achieve intelligent management.
High security
Multiple protection mechanisms: with a variety of protection functions such as overcharge protection, over-discharge protection, short-circuit protection, over-current protection, etc., it can effectively prevent the battery from being damaged due to abnormal conditions, prolong the service life of the battery, and ensure the safety of equipment and personnel.
Stable performance: After strict quality inspection and performance testing, it can operate stably under different environmental conditions and reduce the probability of failure.
The 24V Rackmount Series is a high-performance lithium iron phosphate (LiFePO4) energy storage solution designed for residential, commercial, and telecom applications. Engineered with premium A+ prismatic LFP cells and a modular rackmount design, it offers superior safety, reliability, and scalability—delivering up to 6000+ cycles, 98% efficiency, and up to 50kWh expandable capacity. With smart BMS protection, seamless compatibility with 20+ inverter brands, and multiple communication ports (CAN/RS485/RS232), the 24V Rackmount Series is the ideal choice for solar backup, off-grid energy, and cost-saving power systems. Whether you're upgrading an existing setup or building a new one, this cobalt-free, UL/CE/IEC certified system ensures long-term stability, safety, and performance.
Hot Model Product Specification | ||

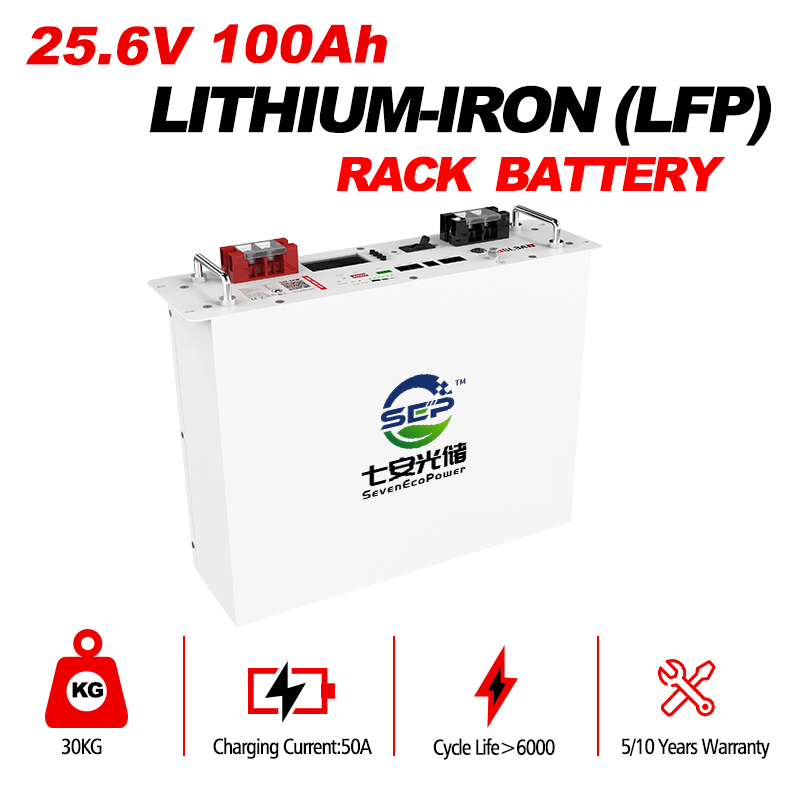

Model | B-LFP24-100E | B-LFP24-200E |
Rated Voltage | 25.6 | 25.6 |
Capacity(Ah) | 100 | 200 |
Energy(kWh) | 2.56 | 5.12 |
Dimension (mm) | 350*482*136 | 538*442*136 |
Pack Configuration | 8S2P | 8S2P |
Recommended Charge Current | 50A | 100A |
Weight (Kg) | 30 | 48 |
Scalable | Max. 16 parallel connections | |
Communication | CAN(500Kb/s)/RS485(9600b/S)/RS232 | |
Enclosure Protection | IP22, IP54/IP65（option） | |
Operation Temperature Range | Charge:0~55℃ 丨Discharge: -20~60℃ | |
Cycle Life | ＞6,000 Cycle@80% DOD /25℃ / 0.5C，60%EOL | |
Warranty | 5 years / 10 years | |
Certification | IEC62619,UL1973,UN38.3,CE | |

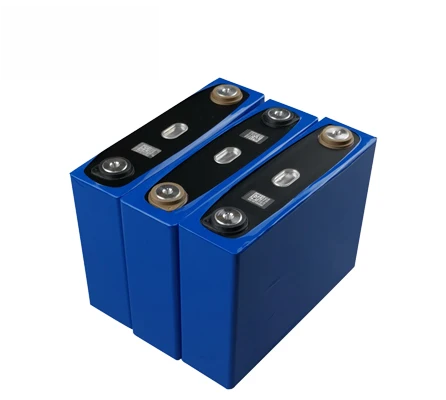

Diamond Shaped Battery Cell
The superior Lithium Iron Phosphate prismatic Al can cell provide superior performance with the highest safety and stability.

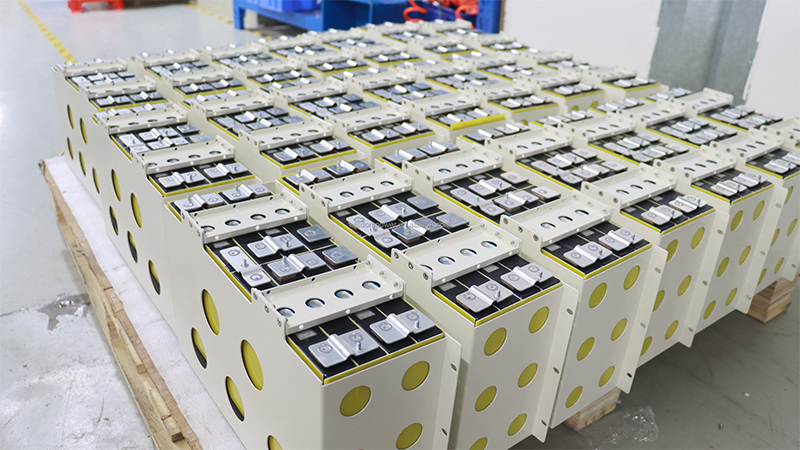

Modular Design
The flexible modular design can be tailored to meet different capacities and voltage neds. 15 LFP cells are connected in series to make 48V lithium-ion battery for telecom towers Modules.
Save up to 25% on your utility bills
The 48 Volt residential solar batteries is the perfect way to automatically save money.
Smart BMS System
Smart BMS will protect batteries,auto balance the voltage gaps among serial of cells and give best maintanance for pack
Product Highlights
● Module level auto-balancing
● Compatible with over 20 inverters
● Tier One, A+ Cell Composition
● 5.12kWh expandable up to 50kWh
● AC Coupled for both new and retrofitted installations
● Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry
● No Thermal Runaway with Fire Propagation
● No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
● Extended Operating Temperature -4 to 140F
Product Highlights
● 98% Efficiency Rate
● Fast Charge & Discharge Rates
● ≥ 6000 Cycle Life with a 10 Year Warranty
● Cycle One to Several Times Per Day
● Seamless Integration with All Industry Standard Inverter/Charge Controllers
● Built-In Safety – BMS with Breaker On/Off Switch for Shipping & Installation
● Modular, Scalable & Proven Performance
● UL rated battery pack.
