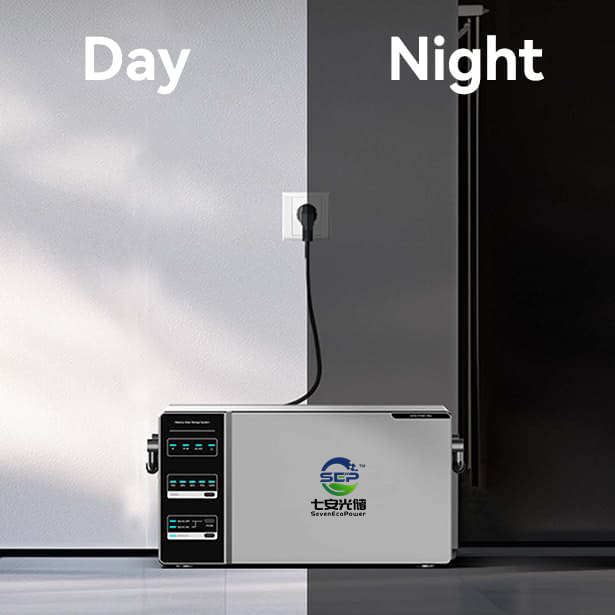

Balcony Energy Storage System

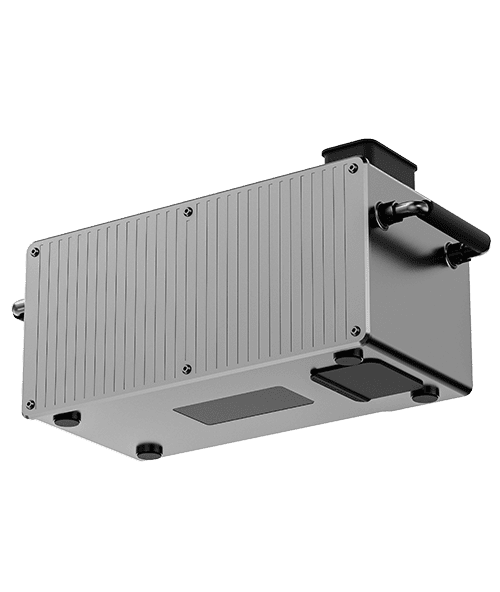

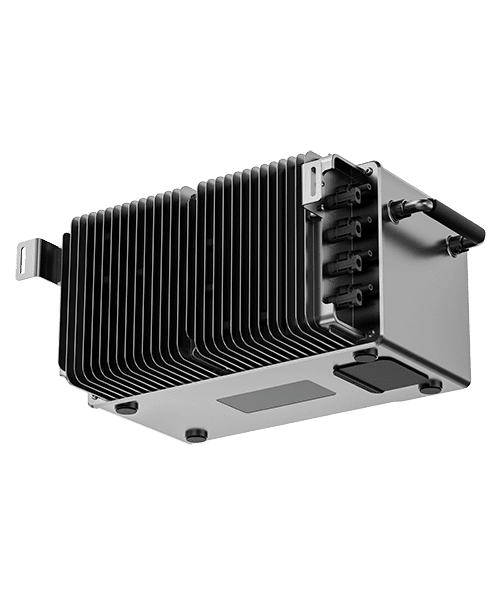

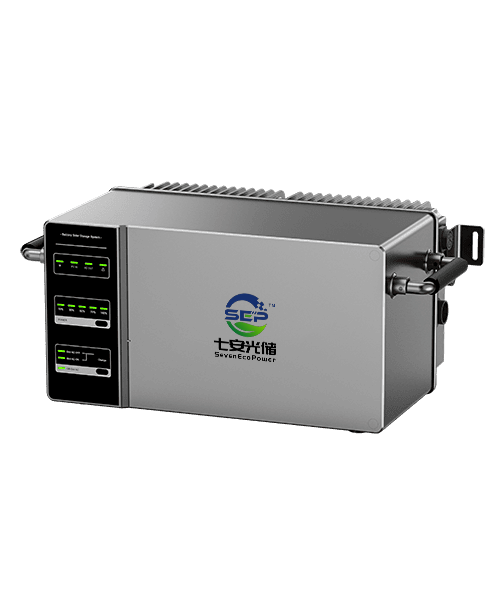

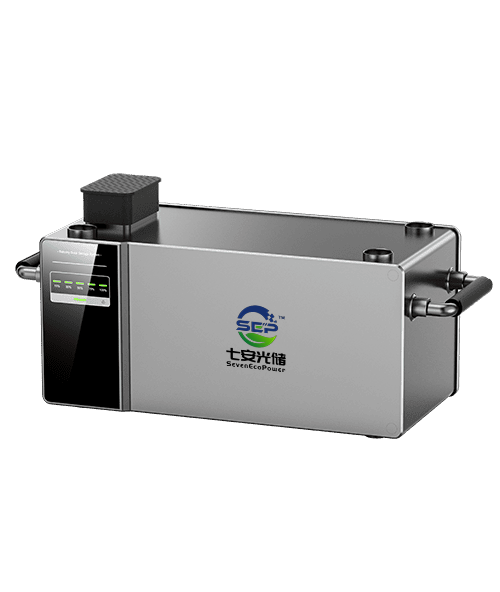

The MicroBox 800 is a plug-and-play all-in-one storage system for balcony systems consisting of an 800W microinverter and a 2kWh Li-FePO4 battery pack, which can be wirelessly stacked to connect to up to three other batteries, compatible with any solar panel.
The Balcony Solar PV Storage System is an all-in-one design that supports up to 2000W of PV output, so you can charge it with up to four 500W solar panels. In addition, this leading microinverter supports 800W of grid-connected output and 1200W of off-grid output, providing your home with reliable power during power outages.
The all-in-one battery and microinverter design simplifies your installation process, and you will have a leading balcony energy storage system in less than 10 minutes, with excess solar energy stored in the LFP battery.
Balcony Energy Storage System (balcony electrical energy storage system) is a small energy storage gadget assisting balcony picture voltaic panels, the necessary attribute is to retailer the more electrical electricity of balcony photovoltaic power generation, to achieve flexible allocation and surroundings pleasant use of energy, especially fantastic for metropolis condominium users. Here's a nearer look:
Core features and functions
Storage of photovoltaic electricity
The electrical energy generated through the photo voltaic panels on the balcony at some point of the day is preferentially used via the family for instantaneous use (such as charging cellular phones, using washing machines, etc.), and the extra electrical energy is saved in the strength storage machine to avoid the quandary of "how an awful lot photovoltaic energy is generated and how a whole lot is used", and the trouble of photovoltaic electricity era and electrical energy demand is no longer synchronized (such as extra electrical energy era however much less electrical energy all through the day, and extra electrical energy however no energy era at night).
Peak-to-valley electricity optimization
If the nearby electrical energy charge implements a peak-to-valley distinction (such as low electrical energy fee in the course of the day and excessive electrical energy rate at night), the gadget can intelligently alter the charging and discharging: charging for the duration of the trough length of electrical energy fee (or when photovoltaic strength era is sufficient), releasing the saved electrical energy at some stage in the height rate duration and lowering the price of family electricity.
Emergency backup power
Some models assist "off-grid mode", which can shortly swap to backup strength in the match of a strength outage to energy indispensable tools (such as lighting, routers, small refrigerators, cellular phones, etc.) to make sure primary dwelling needs.
Energy monitoring and management
With the smart manipulate system, the electricity storage popularity (electricity, charging and discharging power), photovoltaic strength generation, family electrical energy consumption and different statistics can be displayed in actual time via the cell APP, and customers can remotely manipulate the charging and discharging techniques to enhance the comfort of use.
MPPT Input | MPPT (2000 w) |
Grid-Connected Power | 800 w |
Off-grid Input/Output | 1200 w |
PV Input Voltage | 22V-60V DC |
Capacity | 1958Wh x4 |
6000 Battery Cycles | LiFePO4 |
Waterproofing | IP65 |
Wireless Connections | Bluetooth,WLAN(2.4GHz) |
Warranty | 10 Years |
Operating Temperature | -20-55℃ |
weight | ≈25 kg |
Dimensions | 460x249x254mm |

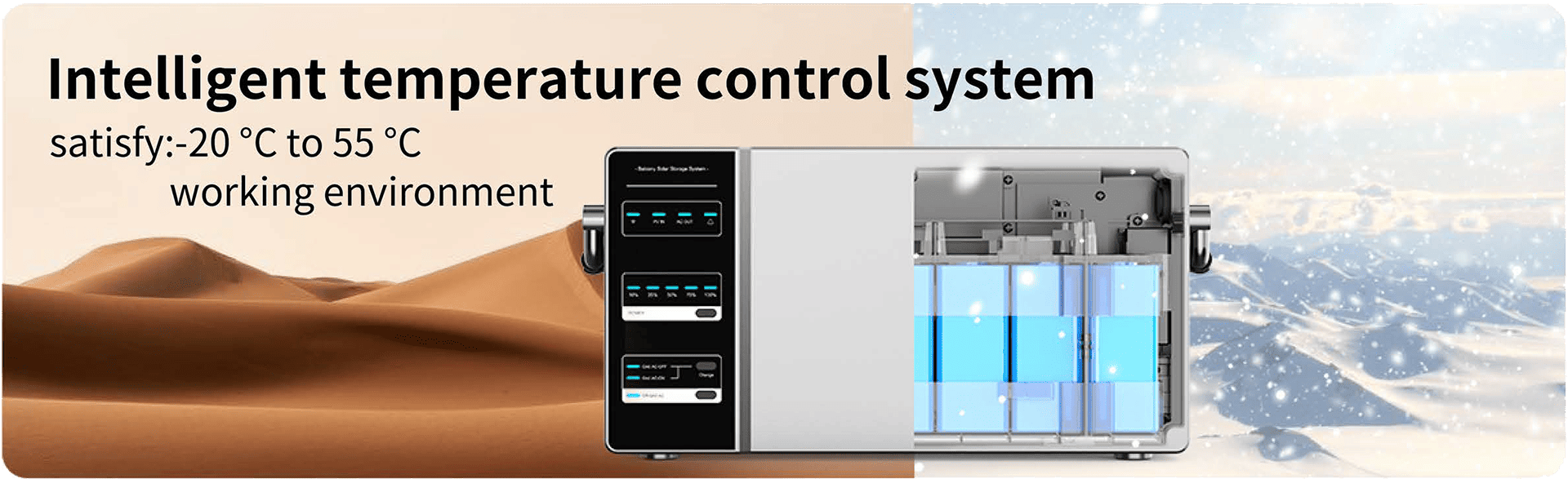

Intelligent Temperature Control System
The wide range of temperature adaptability can be met to power your emergency loads in a wide range of situations.

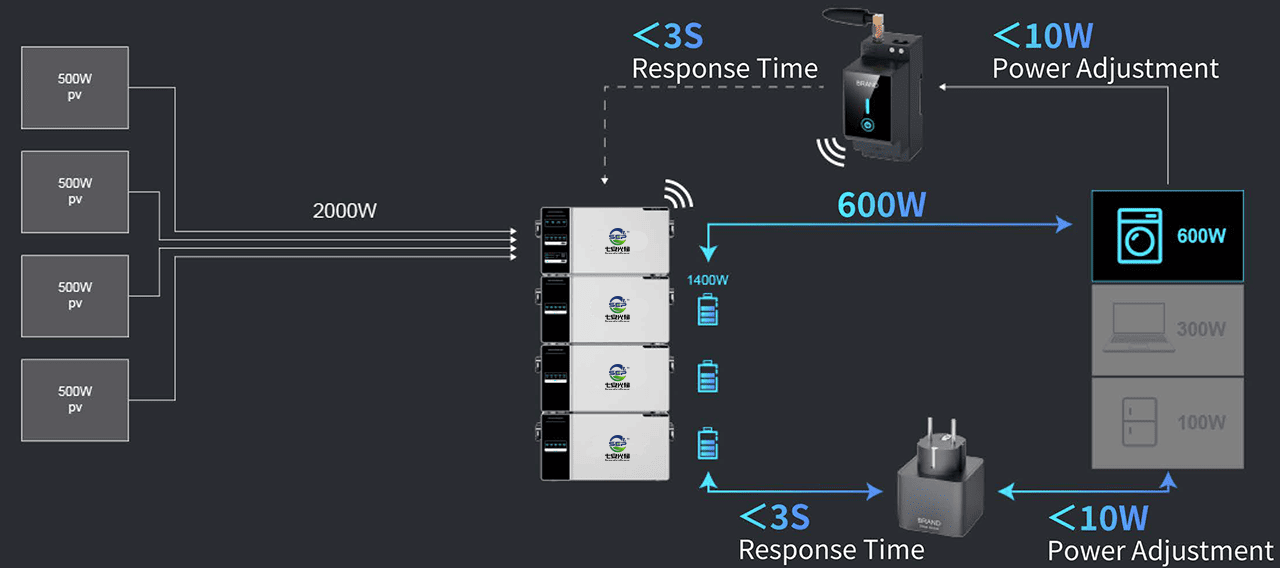

Balcony Solar PV system
Powerlinkage: Power Adjustment ThroughSmart Meters or Smart Sockets, Greatlylmprovingthe Photovoltaic Self-use Rate.(up to 94%)
